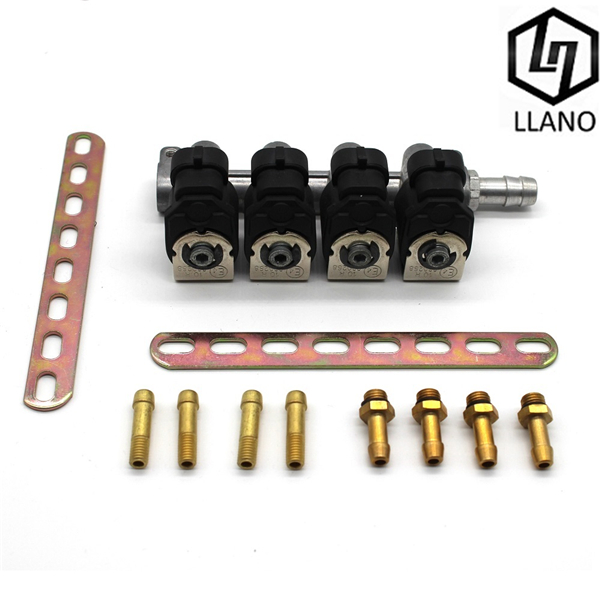

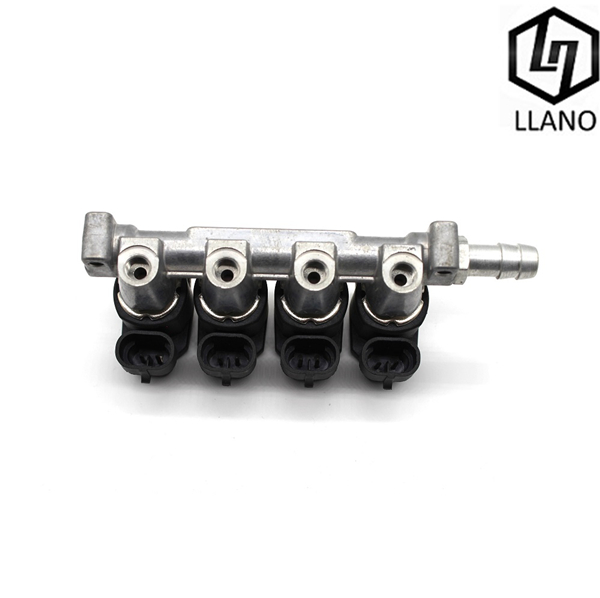

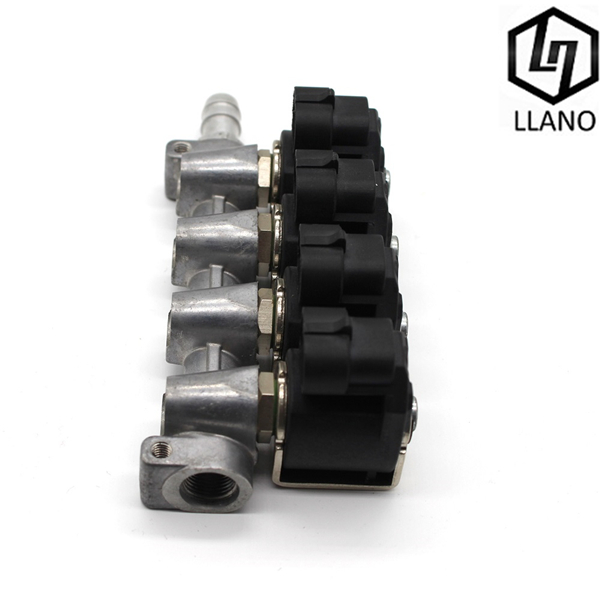

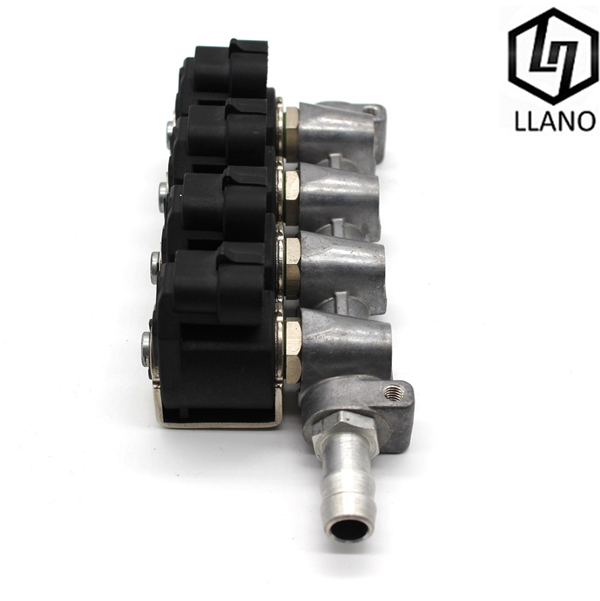

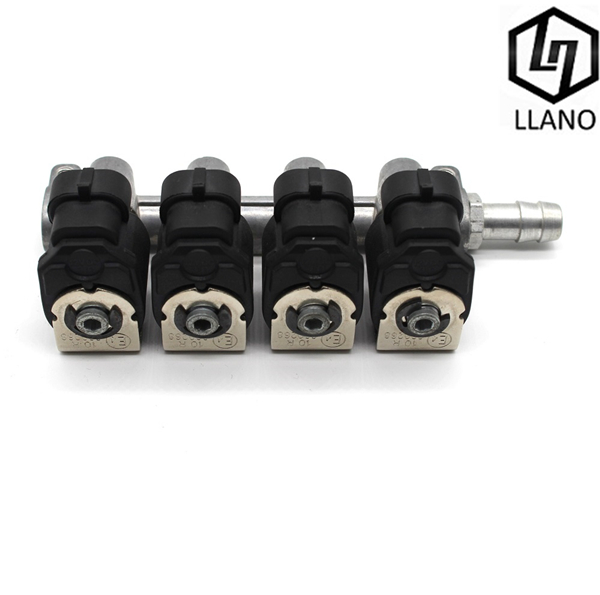

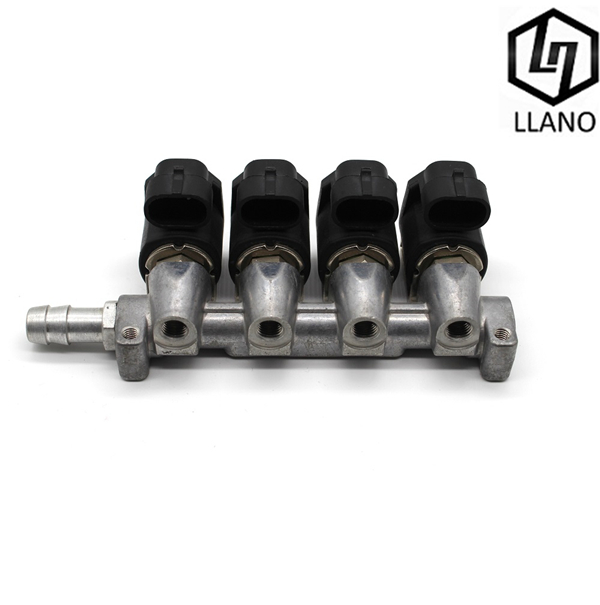

LN-LIG1 4-cylinder Rail Injector

The LN-LIG1 injector rail works in sequential fuel gas injection systems of 4 cylinder autogas cars. It is easy to install and use, and has stable performance and high durability.

E-mail : Hoyark@llanotech.com Phone :+86-18153793720

Product Details

Working Pressure	0.5~2.0 bar
Maxminum pressure	3.0 bar
Supply voltages	10.8~14.4V (Comon DC12V)
Inlet gas fitting	φ10mm, φ12 mm, φ14mm, φ16mm
Outlet gas fitting	Calibrated nozzles M8x1
Calibrated hole range	1.0~2.75 mm (0.25 mm step)
Temperature range for LPG	-20 ~120°C
Temperature range for CNG	-40 ~120°C
Openning time	2.5ms, 2.8ms, 3.2ms
Closing time	1.9ms
Resistance	2Ω
