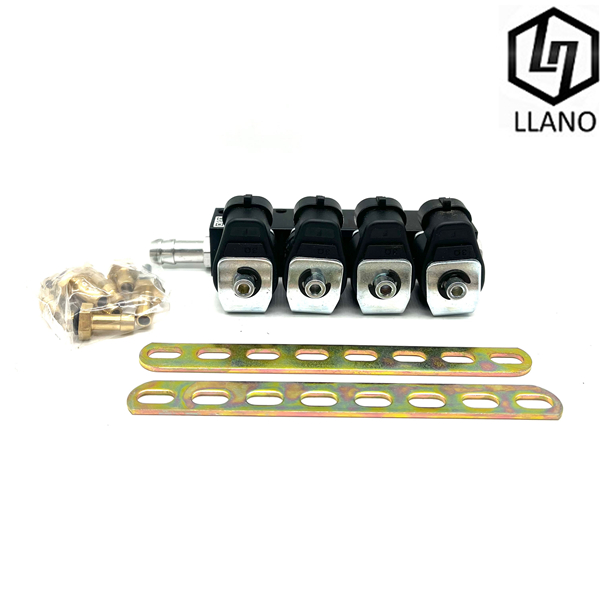

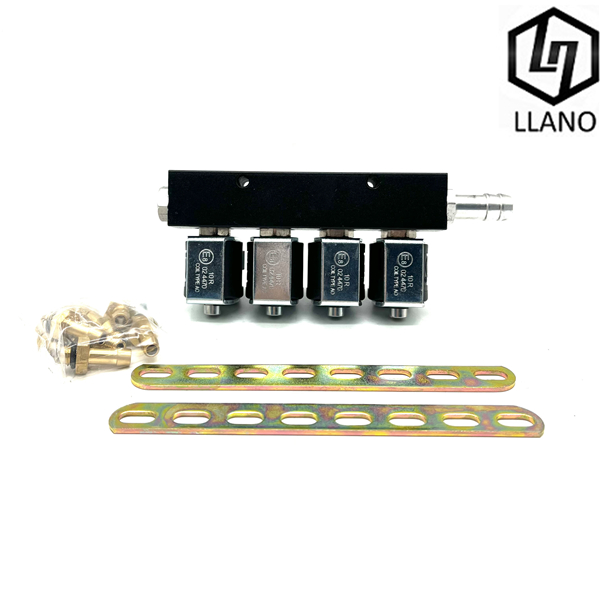

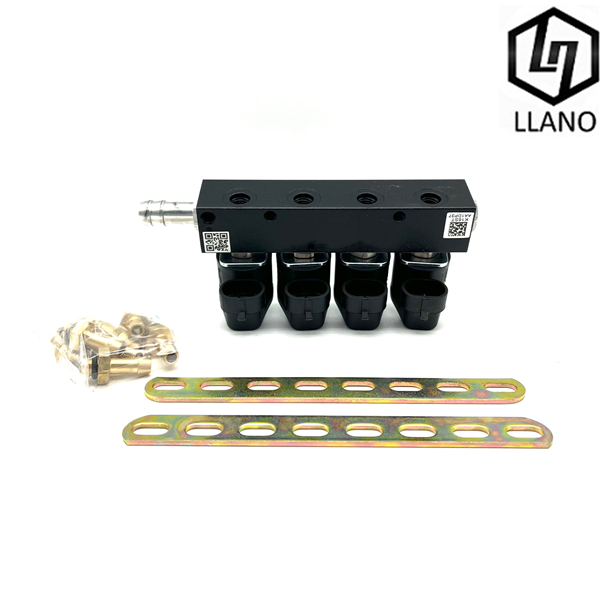

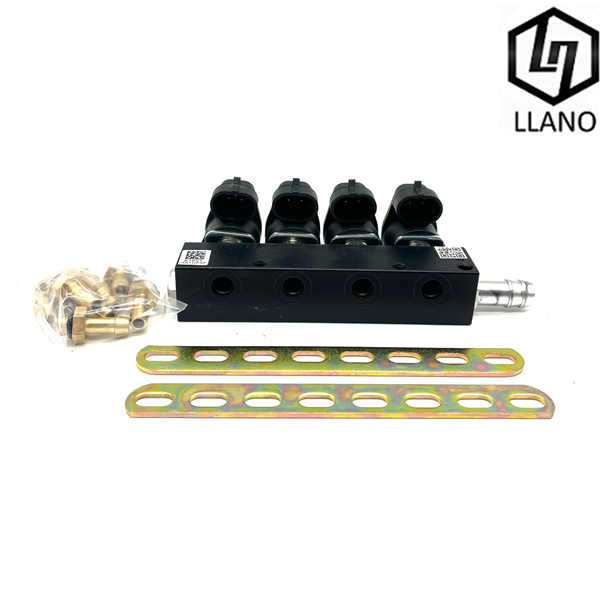

LN-LIG1S 4-cylinder Rail Injector

The LPG CNG injector is required for cars running on alternative autogas fuel. It injects gas fuel into the engine in computed quantity.

Product Details

Working Pressure0.5~2.0 bar
Maxminum pressure3.0 bar
Supply voltages10.8~14.4V (Comon DC12V)
Inlet gas fittingφ10mm, φ12 mm, φ14mm, φ16mm
Outlet gas fittingCalibrated nozzles M8x1
Calibrated hole range1.0~2.75 mm (0.25 mm step)
Temperature range for LPG-20 ~120°C
Temperature range for CNG-40 ~120°C
Openning time2.5ms, 2.8ms, 3.2ms
Closing time1.9ms
Resistance
