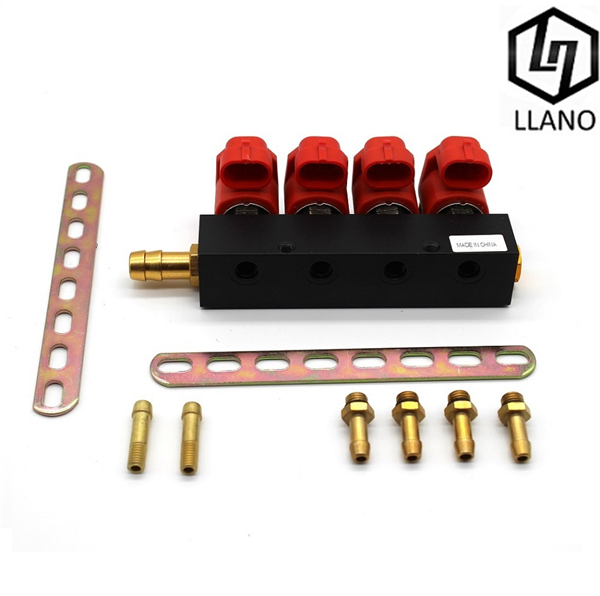

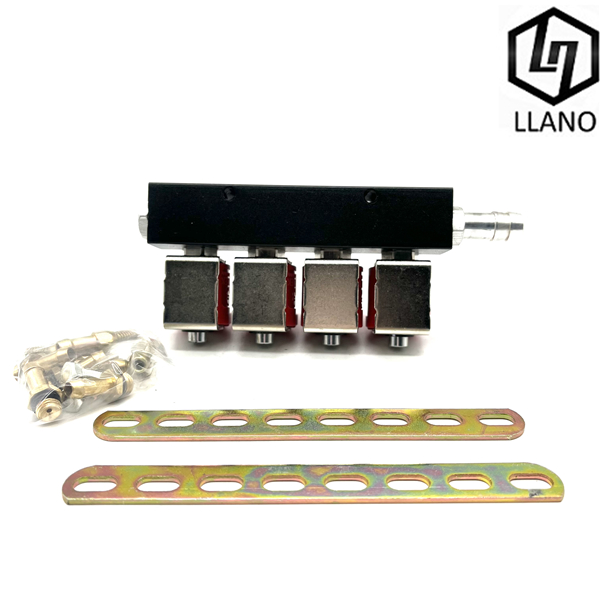

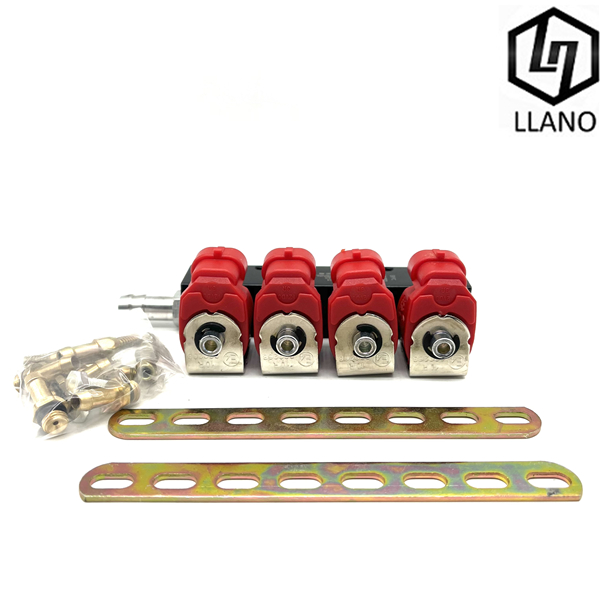

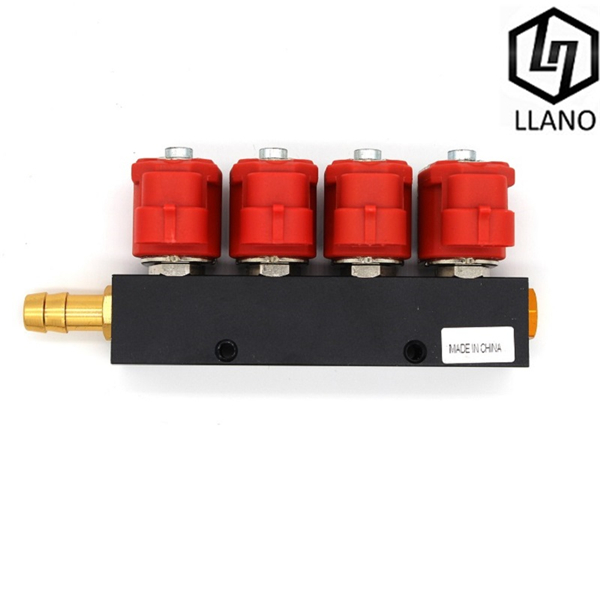

LN-LVTK04 4-cylinder Rail Injector

The LN-LVTK04  injects the compressed natural gas into the gas rail or the cylinder regularly and quantitatively according to the injection quantity calculated by the ECU.



The LN-LVTK04 works well with CNG and LPG fuel. It is easy to install and use. It has a compact size, good performance and work silently.


Product Details

Gas fuel typeLPG or CNG
Cylinder number4 cylinder
Inlet gas fittingφ10 mm,φ12 mm
Working Voltage7-11V
Work Pressure0.5~2.5 bar
Maximum pressure4.5 bar
The high frequently rate167Hz
Closing time2.0 ± 0.05 ms
Opening time2.4 ms
Resistance2 Ohm or 3 Ohm
