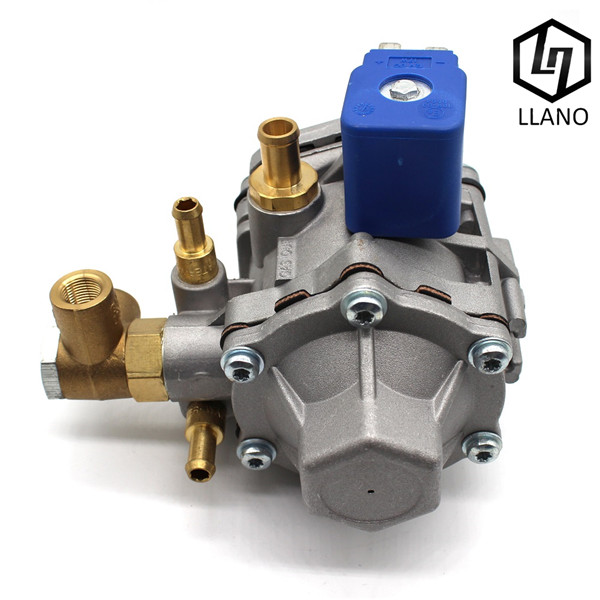

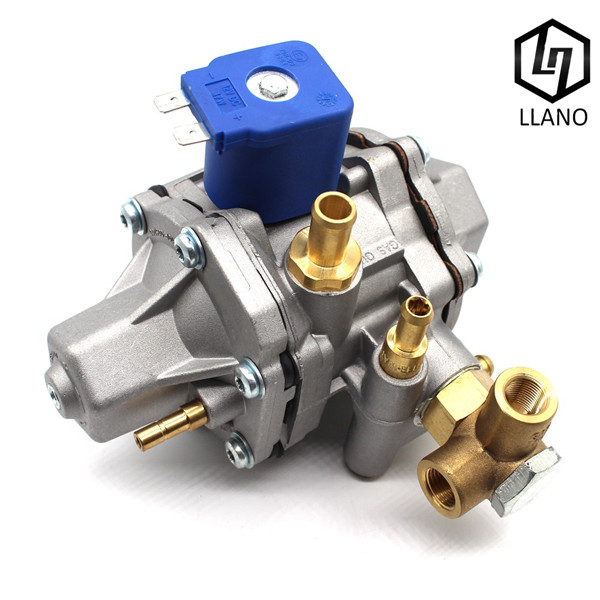

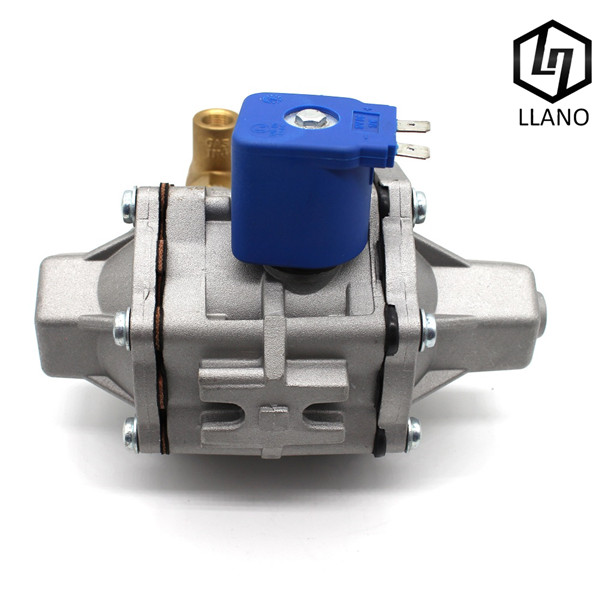

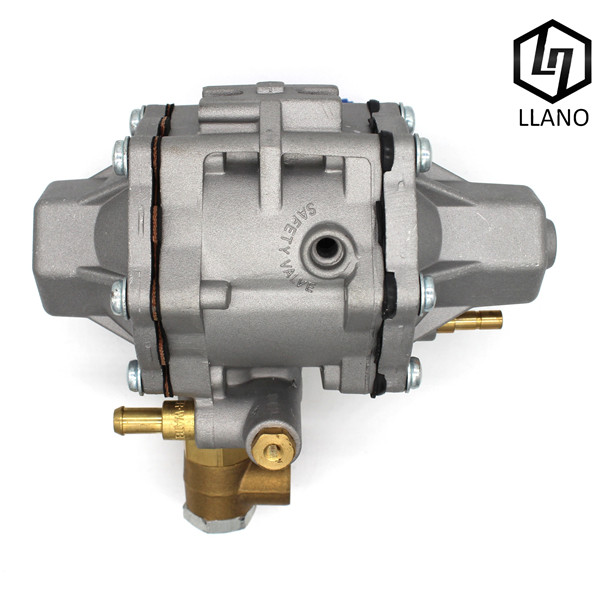

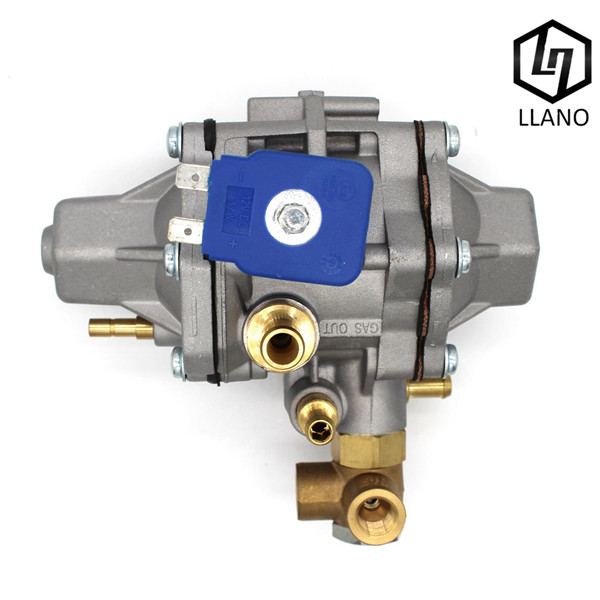

LN-AT12 CNG Reducer

AT12 CNG pressure regulator is a 2-stage pressure reducer for traditional CNG sequential injection systems. It is equipped with a low pressure solenoid valve.

E-mail : Hoyark@llanotech.com Phone :+86-18153793720

Product Details

Gas fuel type	CNG
Work for	CNG sequential injection system
Material	Die cast aluminium body
Size	12cm15cm15.5cm
Weight	1.8 kg
Max inlet pressure	26 MPa
Outlet pressure	adjustable from 160 to 280 kPa
Coil voltage	12 V DC
Coil power	17 W
Inlet Connection	M12x1 pipe ? 6 mm
Outlet connection	Swivel fitting ? 12.5 mm
Coolant liquid connections	for rubber pipe ? 8 mm
MAP connection	for rubber pipe ? 6 mm
Working temperature	-40~120 °C
