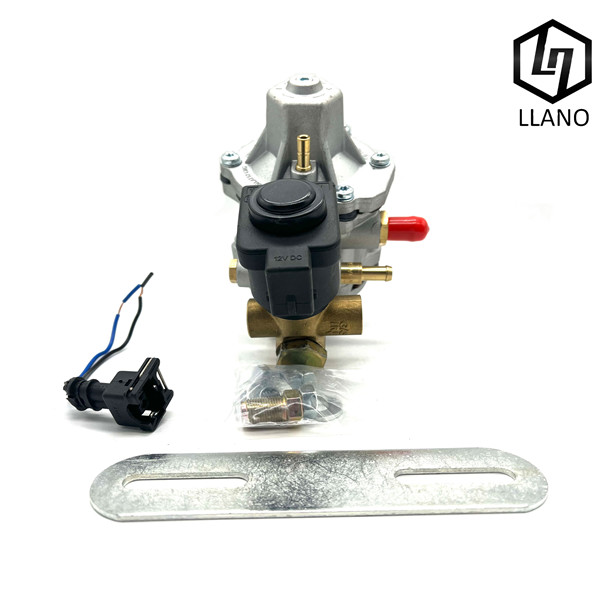

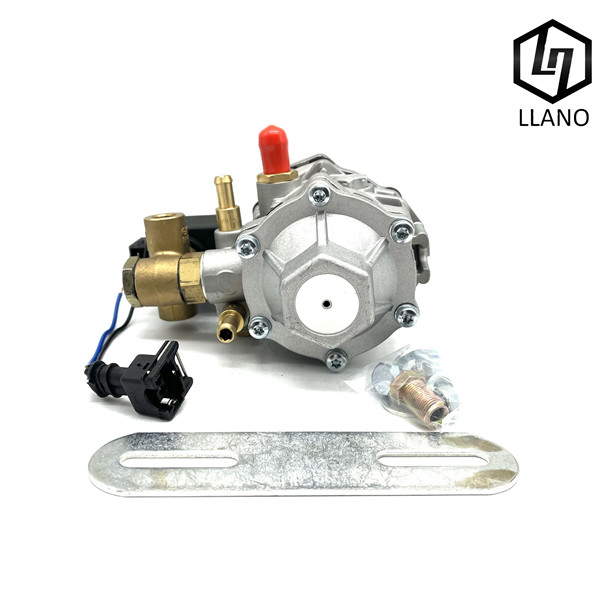

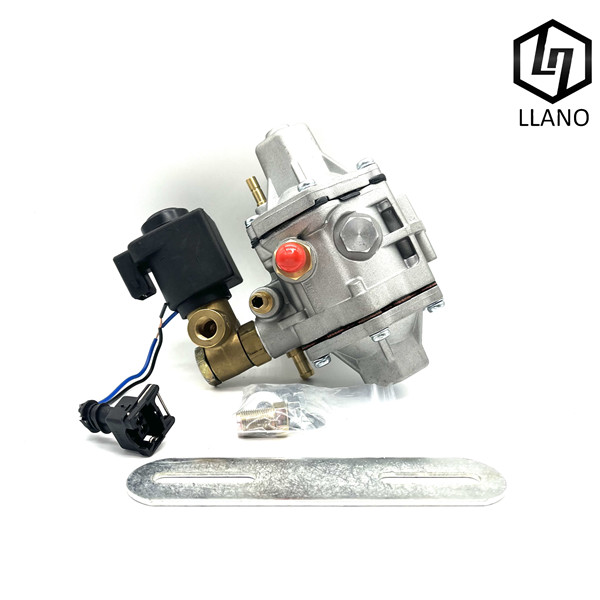

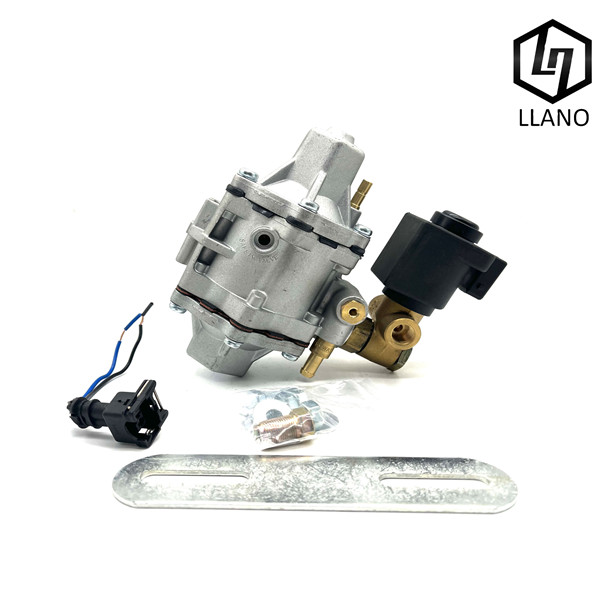

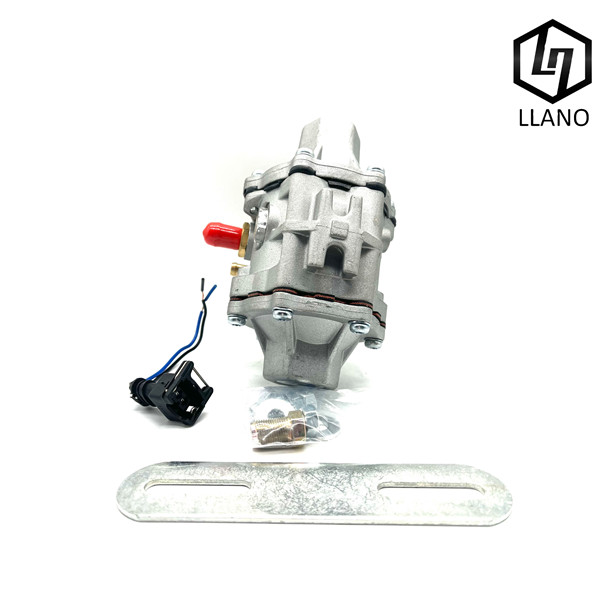

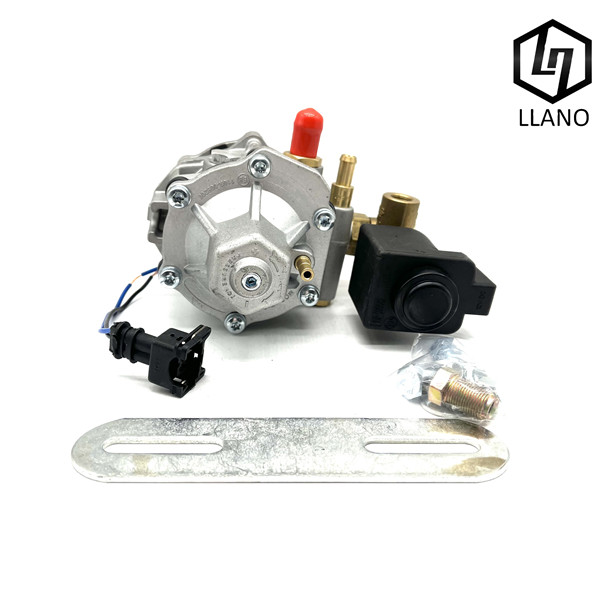

LN-AT12H CNG Reducer

AT12H CNG pressure regulator is a 2-stage pressure reducer for traditional CNG sequential injection systems. It is equipped with a high pressure solenoid valve.

E-mail : Hoyark@llanotech.com Phone :+86-18153793720

Product Details

Gas fuel type	CNG
Work for	CNG sequential injection system
Material	Die cast aluminium body
Size	17.5cm11cm15.5cm
Weight	2 kg
Max inlet pressure	26 MPa
Outlet pressure	adjustable from 160 to 280 kPa
Coil voltage	12 V DC
Coil power	15 W
Inlet Connection	M12x1 pipe ? 6 mm
Outlet connection	Swivel fitting ? 12.5 mm
Coolant liquid connections	for rubber pipe ? 8 mm
MAP connection	for rubber pipe ? 6 mm
Working temperature	-40~120 °C
