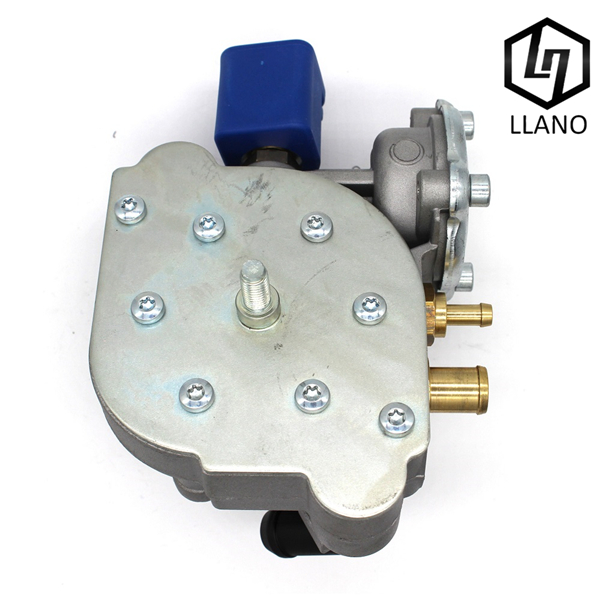

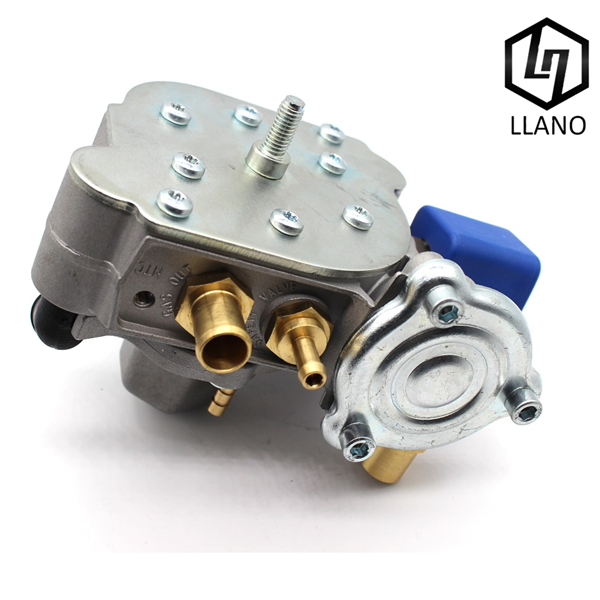

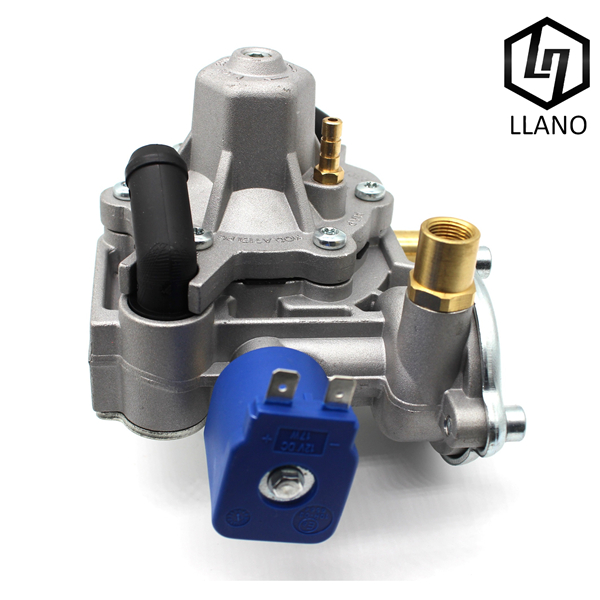

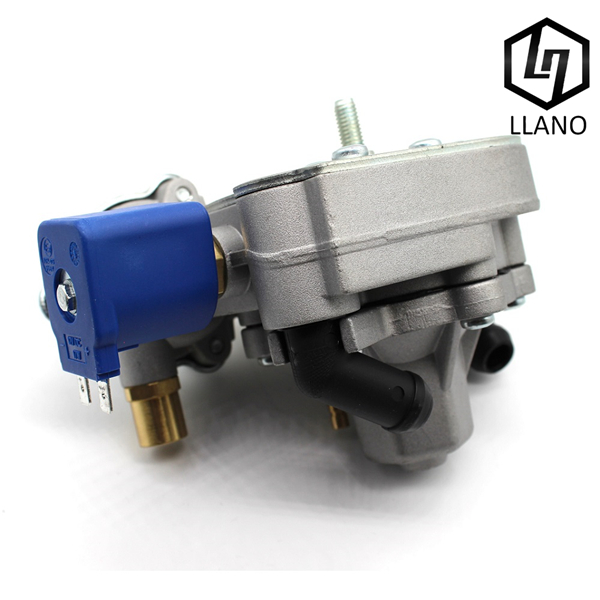

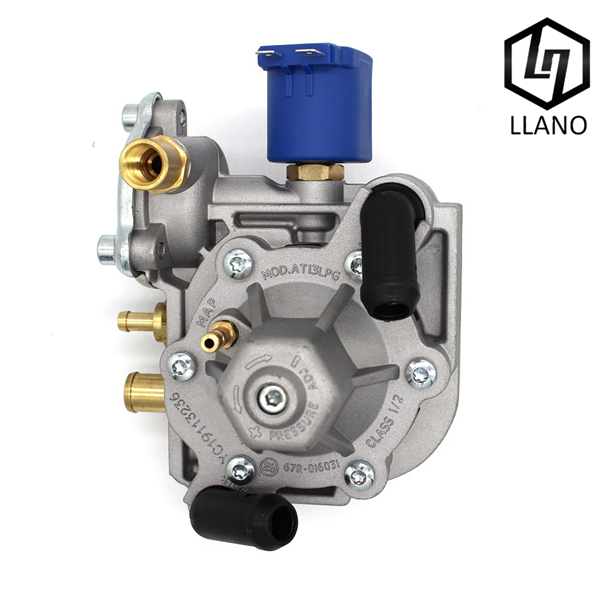

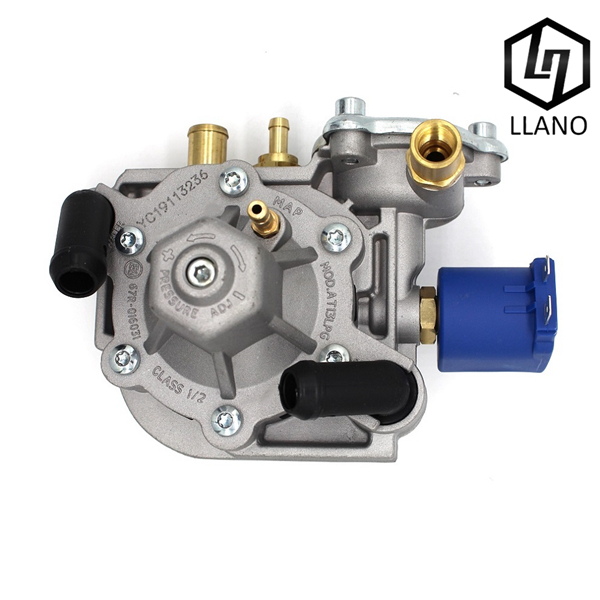

LN-AT13XP LPG Reducer

The LPG reducer has the following features

  • double membrane system

  • double gas outlet for direct connection of 2 rails

  • internal discharge of safety valve through MAP

  • high flow rate with very stable and adjustable outlet pressure

  • additional plate and redesigned water and gas circuits

  • integrated solenoid valve and filter at the inlet


Product Details

Gas fuel typeLPG
MaterialDie cast aluminium body
Weight1.7 kg
Size17cm*12cm*15cm
Max inlet pressure3 MPa
Outlet pressureAdjustable 90~180 kPa
Coil voltage12 V DC
Coil power17W
Inlet connectionM10x1 pipe ? 8 mm
Outlet connectionFixed fitting ? 12.5 mm
Engine powerUp to 275 kW
