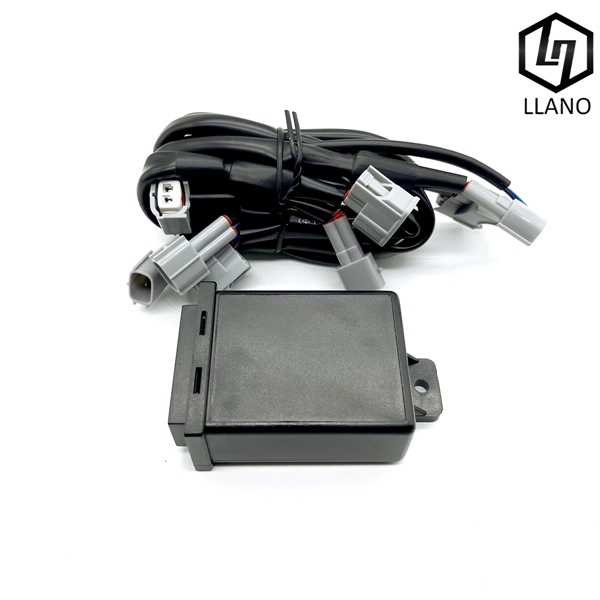

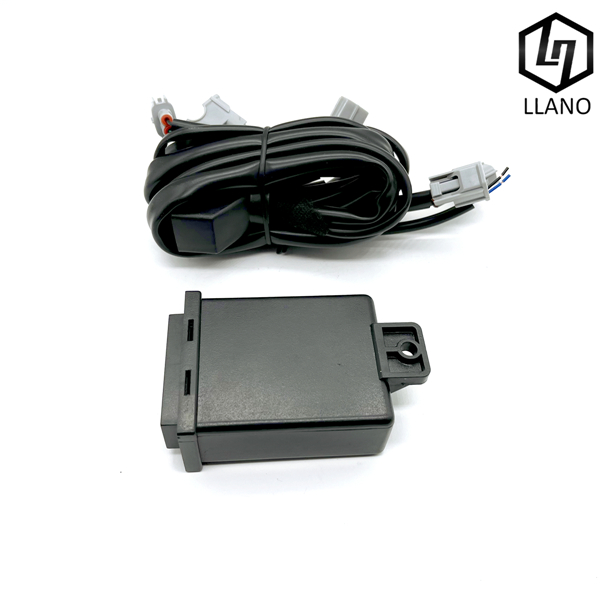

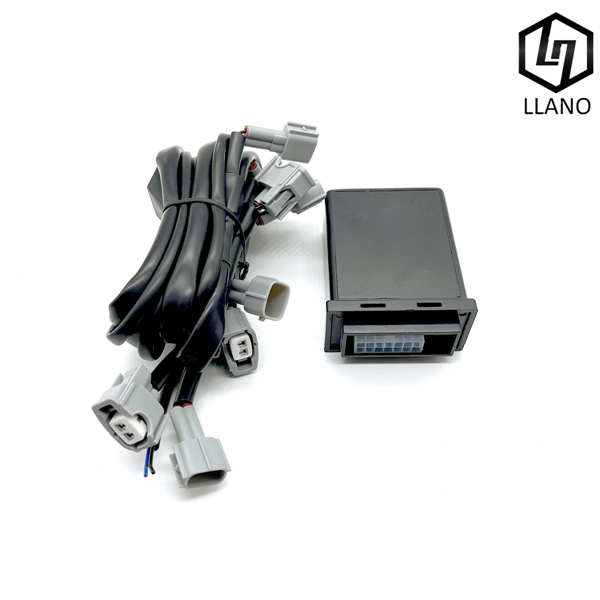

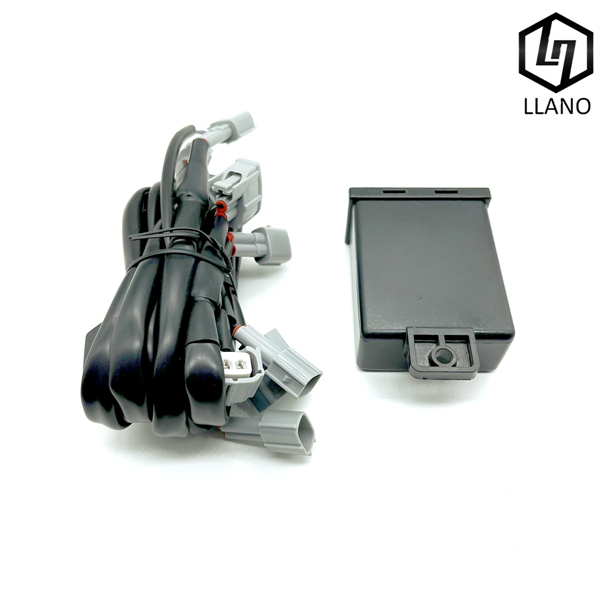

LN-EMU-4C Injector Emulator with Type 2 Cable

Injectors Emulater 4 cylinder is an device that cut – off and simulates injector operation when vehicle is used with gas, thus avoiding ignition of the check engine warning light and possible malfunctions due to injectors cut – off data memorized in the injection electronic control box.



LN-EMU-4C Injector emulator is designed for 3 and 4 cylinder cars and is capable of emulating the normal operation of the petrol injectors while the vehicles runs on CNG or LPG autogas.



The emulation prevents the Check Engine Light from acitvating due to injection anomalies.

Product Details

Gas fuel typeLPG
Work forInjection systems
Engine type4 cylinder
MaterialABS Plastic
ShapeRectangular
Connector type14 pin
Weight0.3 kg
Size11cm*3.5cm*8cm
Power supply voltage10~14 V (DC 12V)
Woking temperature-40~110oC
Emulation for injectors11~16 Ω
Adjustment of overlap time for switching from petrol to gasApproximately 0~1 second
